Ingersoll Rand 2545

Description

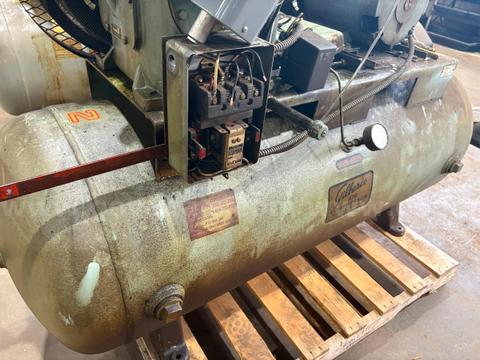

Worked when recently disconnected. Had a small leak at one of the fittings and was repaired as shown in picture. An internet search provides: The Ingersoll Rand 2545E10 identifies the specific horizontal tank configuration of this industrial 10 HP heavy-duty compressor system. The "E" explicitly denotes a 120-gallon horizontal air receiver tank, separating it from the vertical "K" model. Critical Specifications Tank Style: 120-gallon horizontal ASME-coded tank (often called a "hot dog" layout).Performance: Provides 35 to 35.6 CFM at 175 PSI. Power Requirements: Heavy-duty industrial electric motor operating on 3-phase power. It must be specified at purchase for your facility's voltage (200V, 230V, 460V, or 575V). Physical Profile: Measures roughly 73" L x 28" W x 51" H and weighs approximately 835 to 900 lbs dry. Air Outlet: Features a standard 3/4-inch NPT ball valve connection.
